RFID Label

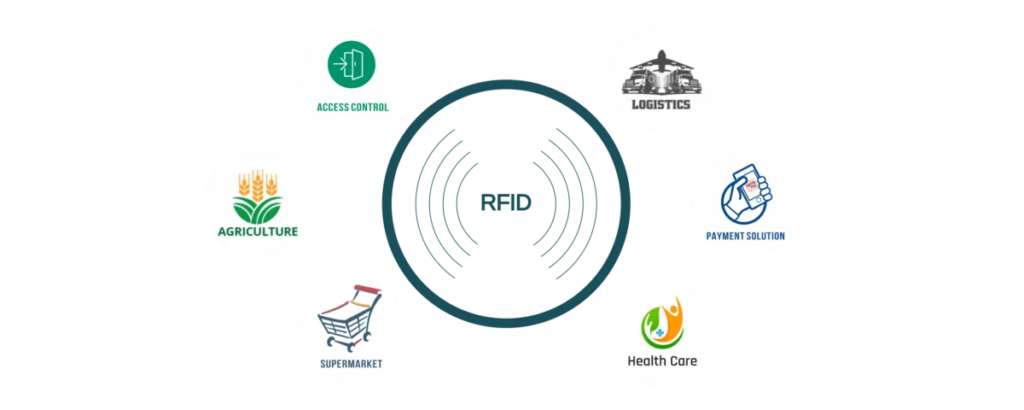

RFID label is a paper or plastic label with RFID inlay embedded inside, it’s normally used for warehouse management, assets sorting, logistics management, library management, product anti-counterfeiting, etc.

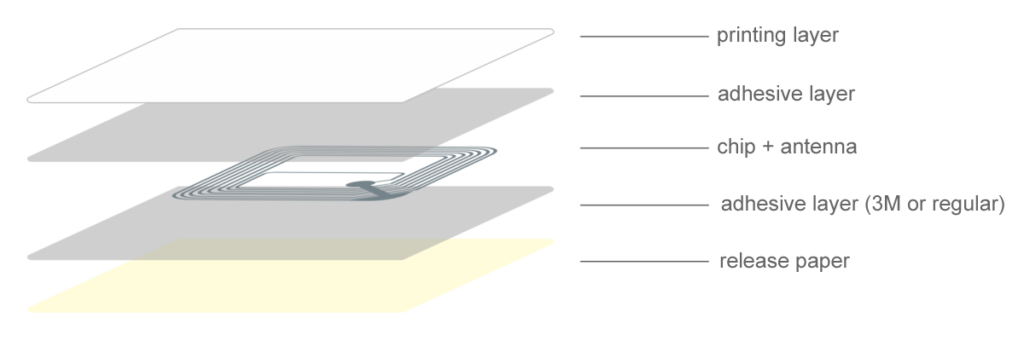

RFID Label Structure (5 layers)

P.S. We always make the release paper a little larger than the label itself as it will be more easily peeling off.

Huyida also provides RFID dry inlay and RFID wet inlay for LF, HF and UHF frequency. (dry inlay and wet inlay are the labels that without the printing layer)

How does RFID label work?

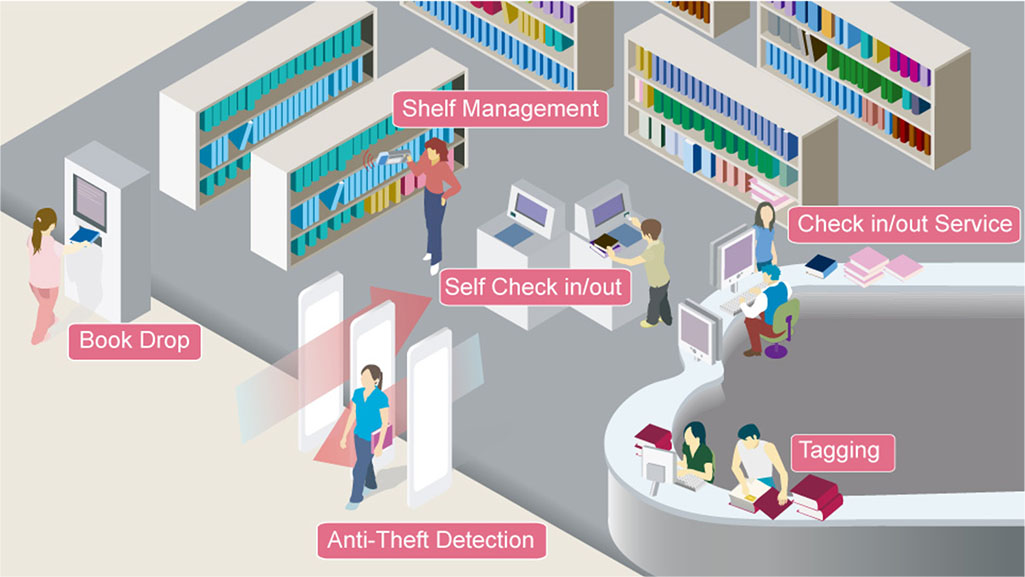

Take RFID library label as example

RFID label with book information encoded inside the chip

each book cover sticked with an RFID label

scanning RFID label with an RFID portable reader

book information transmitted and stored in the data system

Personalization for RFID Label

Available printing method

inkjet numbering – PET only
inkjet printing – all types of material
Thermal transfer printing – all types of material
Direct thermal printing – thermal paper, thermal synthetic paper
Laser printing – all types of material expect coated paper and thermal paper
Offset printing – all materials, for printing logo and common information
Silkscreen printing – all materials, for printing logo and common information

What's the difference between RFID label and normal label?

	RFID	Normal Label
Read Method	Radio Signal	Optical Scanner
Visible Information	Not required	Required
Reading Range	0 – 50 feet	0 -10 inches
Reading Performance	Many at once (UHF)	One at once
Content	Printing & Encoding	Printing
Function	Read / Write	Read only
Memory	Up to 8K bytes	No memory
